Steel Plate Mini Gantry CNC Cutting Machine With Flame / Plasma Cutting Mode
Description:
1. Graphic scale, rotate, mirror image, matrix permutation, idling, select line or line number, etc, Which will frequently be used.
2. Automatically control the cutting speed to avoid over-burning according to plate thickness. Possible to edge cutting, offset cutting, to avoid wasting of meal sheet caused by calculation errors.
3. Graphics zoom-in or out, and tracking the cutting point dynamically while zoom-in status. Customize the type of all input and output ports (normally open or close) and the number
4. Self-diagnostic system for all IO and keyboard status, convenient for inspection and trouble-shooting. Export files, parameter backup, online upgrade; date, week and time display.
5. Oxygen gas, plasma and presentation modes; various inside machining parameters for match various demand.
6. Separately control oxygen gas from plasma IO; adjust the height of oxygen gas automatically, two grades of preheat, three grates of perforation; plasma arc voltage feedback, position feedback, automatically shut down arc voltage in the corner.
7. Auto-memory and recovery in case of power-off or point break, return function, emergency stop button, recover to the pre-status automatically, avoid mis-operation.
8. High-subdivision stepper motor driver, low noise, high running precision, and movement smoothly.
9. Cutting slot compensation auto-setting function,cutting gun movement, cutting gun perforation remain, preheated time auto-memory, keyboard diagnostication, temperature-controlled fan. Auto-adjust height of cutting gun and multiple torch clamp structure.
Applications:
CNC plasma cutting machine is now widely used in industries such as machine tool manufacturing, Petro-chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc.
Specifications:
Technical Parameters for I Light Gantry CNC Cutting Machine
| 1 | Cutting shape | Steel plate with any plane shapes fromed by straight lines and arcs |
| 2 | LCD Display Dimension | 7.0 Inches |
| 3 | Effective Cutting Size | 2500*6000mm |
| 4 | Railway Size | 3000*7000mm |
| 5 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 6 | Flame Cutting Thickness | 5--200mm |
| 7 | Lifting body | 1 lifting body standard |
| 8 | Cutting Speed | 0-8000mm per minute |
| 9 | Height Control | Electric Height Control+Arc Voltage Height Control(THC) |
| 10 | Drive Mode | Bilateral drive |
| 11 | Cutting Mode | flame and plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | File transmission | USB transmission |
| 14 | Gas Pressure | Max. 0.1Mpa |
| 15 | Oxygen Pressure | Max.0.7Mpa |
| 16 | Cutting Gas | Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air |
| 17 | Software | FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.) |
| 18 | Cutting accuracy | ±0.5mm |
| 19 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 20 | Rated Power Supply | 1500W |
| 21 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |

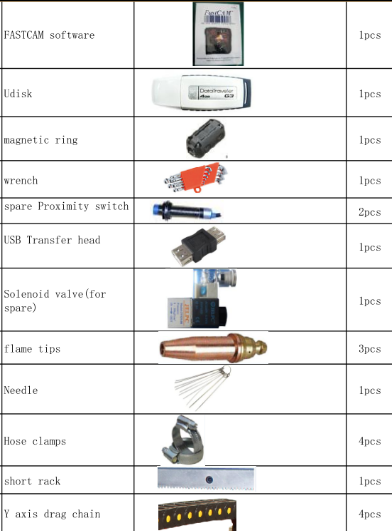

Parts:
I Light Gantry CNC Cutting Machine:
